Photovoltaic junction box：Full current coverage + long and short connection lines

2026-01-04

The outdoor protective box for photovoltaic systems is a crucial part of the outdoor deployment of photovoltaic systems. Its core function is to ensure the safe connection of photovoltaic modules with core components such as inverters and current collectors. It also integrates circuit breakers to achieve overcurrent and short-circuit protection, and relies on professional protective structures to withstand harsh outdoor conditions such as wind, rain, and humidity, thereby avoiding circuit failures and potential safety hazards. Before this upgrade, similar products on the market often had issues such as incomplete current specifications and fixed wiring lengths, resulting in difficulties in selection and cumbersome installation for photovoltaic projects of different power ratings and installation scenarios.

This upgrade has been the first to achieve complete coverage of all current ranges (16A, 32A, 40A, 63A), precisely matching the full range of requirements from small power for households to large power for industrial and commercial use.To address the common issue of mismatched wiring lengths in outdoor installations, this upgrade has simultaneously introduced the "short-line version" and "long-line version" dual wiring configurations, enabling full-dimensional adaptation to various installation scenarios.

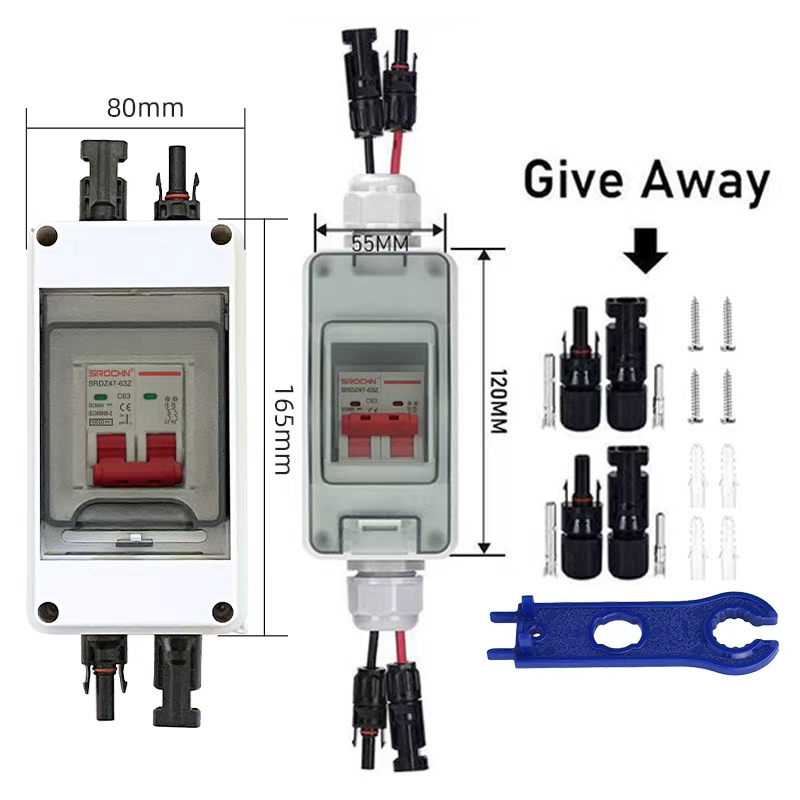

It is worth noting that the upgraded full-specification products have fully retained the core protection advantages of the original models. They adopt the perfect combination of a waterproof casing and the MC4 dedicated connector, possessing excellent outdoor resistance to harsh environments and can handle complex conditions such as rain, dust, and moisture with ease. At the same time, the complete set of accessories including installation screws and connector wrenches enable "installation right out of the box", eliminating the need for users to purchase additional compatible components, significantly improving the installation efficiency.

Currently, this product has become the preferred choice for photovoltaic projects in households, farms, factories, etc. With the advantages of "installation speedup + cost reduction + maintenance ease", it continues to lead the outdoor wiring protection market for photovoltaic applications.

	Traditional split solution	New integrated junction box	Improvement percentage
Installation time for a single unit	About 60 minutes	About 15 minutes	Reduce by 75%
Post-maintenance costs	An average of approximately 80 yuan per year	An average of approximately 48 yuan per year	Reduce by 40%
Quantity of accessory purchases	3 types (switch + box + wire)	1 Class (Integrated Box)	Reduce by 67%

Photovoltaic Junction Box "Length + Current" Specifications

Current specifications

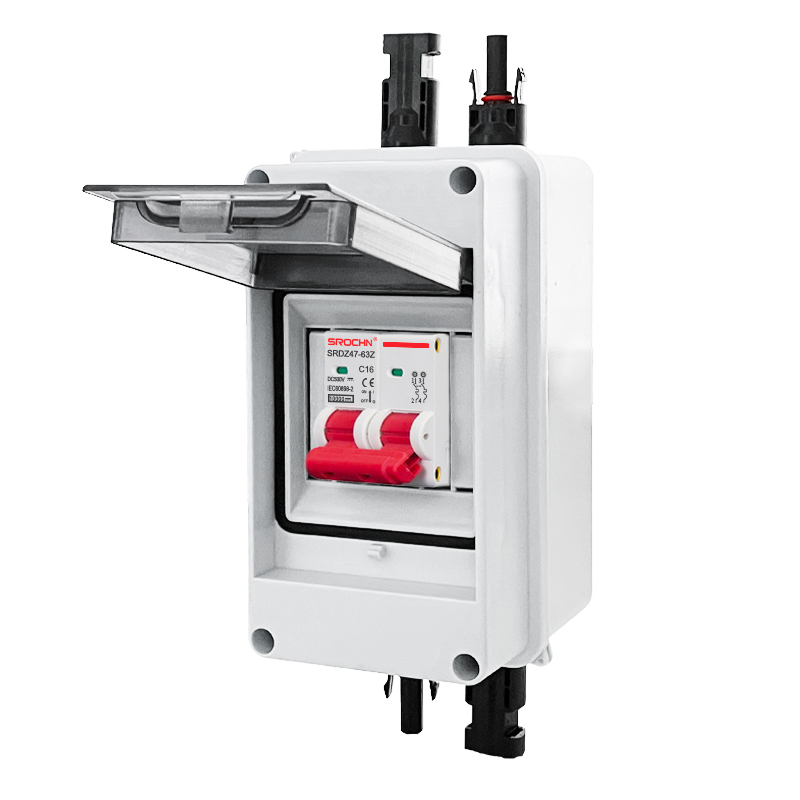

16A	Suitable for small household/balcony photovoltaic systems with a power rating of 8kW or less (≤10 modules)
32A	Suitable for 8-16kW household / small farm photovoltaic systems (10-15 modules)
40A	Suitable for medium-sized household / small commercial and industrial PV systems with a power rating of 16-20kW (15-20 modules)
63A	Suitable for medium and large-scale commercial and industrial photovoltaic systems with power above 20kW (≥20 modules)

Wiring length

Short Wire Version (≤0.5 meters)	Suitable for scenarios where components are close to the combiner box/inverter (such as balcony PV or small centralized rooftop arrays), reducing redundant losses in 500V lines and saving space.
Long-line version (1-2 meters)	Suitable for scenarios where components are far from the combiner equipment (such as dispersed components in factory buildings or cross-regional installations in courtyards). No additional extension cables are required under 500V, avoiding waterproofing/contact risks at connection points.

PV Junction Box Installation: Avoid These 5 Common Pitfalls

When installing a PV junction box, small but critical details can impact safety and longevity. Pay attention to the following:

Disconnect the PV module output before installation (residual voltage may remain; wait 10 minutes before proceeding).
Wear insulated gloves when wiring to avoid direct contact with metal terminals, preventing electric shock.
For MC4 connectors, ensure a "click" sound is heard when fully inserted, then gently tug to confirm they won't detach.
Tighten screws on internal circuit breaker terminals (use the provided wrench) to prevent loose contacts, overheating, or damage.
Ensure the junction box's sealing gasket fits snugly (check for deformation or debris during installation).
After outdoor installation, wrap waterproof tape around the cable entry points to prevent rainwater seepage.
Avoid direct sunlight (prolonged heat accelerates plastic degradation); mount on the panel's backside or a shaded area.
Maintain airflow around the box—keep it unobstructed. Poor ventilation may trigger overload protection due to heat buildup.
After wiring, turn on the circuit breaker and verify output voltage with a multimeter.
Run for 1 hour, then check the box and connectors for excessive heat (>50°C). If overheating occurs, inspect for loose wiring or undersized current ratings.
